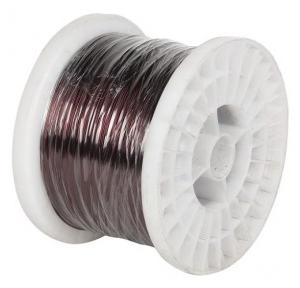

Enameled Copper Wire

Brands

Diameter (mm)

Standard Wire Gauge

Filter

Features:

Diameter (mm) : 0.173

Resistance (Ohms/m) : 0.5893

Standard Wire Gauge : 37

Covering : Min: 0.20, Max: 0.225

Voltage (kV) : 1.5

Features:

Diameter (mm) : 0.152

Resistance (Ohms/m) : 0.5893

Standard Wire Gauge : 38

Covering : Min: 0.20, Max: 0.225

Voltage (kV) : 1.5

Features:

Diameter (mm) : 0.173

Resistance (Ohms/m) : 0.5893

Standard Wire Gauge : 37

Covering : Min: 0.20, Max: 0.225

Voltage (kV) : 1.5

Features:

Diameter (mm) : 0.152

Resistance (Ohms/m) : 0.5893

Standard Wire Gauge : 38

Covering : Min: 0.20, Max: 0.225

Voltage (kV) : 1.5

Features:

Diameter (mm) : 2.64

Resistance (Ohms/m) : 0.00314

Standard Wire Gauge : 12

Covering : Min: 2.742, Max: 2.775

Voltage (kV) : 5

Features:

Diameter (mm) : 2.336

Resistance (Ohms/m) : 0.004021

Standard Wire Gauge : 13

Covering : Min: 2.435, Max: 2.465

Voltage (kV) : 5

Features:

Diameter (mm) : 2.032

Resistance (Ohms/m) : 0.005316

Standard Wire Gauge : 14

Covering : Min: 2.123, Max: 2.152

Voltage (kV) : 5

Features:

Diameter (mm) : 1.829

Resistance (Ohms/m) : 0.006562

Standard Wire Gauge : 15

Covering : Min: 1.917, Max: 1.945

Voltage (kV) : 5

Features:


Spring Back: 20

Diameter (mm) : 1.626

Resistance (Ohms/m) : 0.008303

Standard Wire Gauge : 16

Covering : Min: 1.7, Max: 1.73

Voltage (kV) : 5

Features:


Spring Back: 22

Diameter (mm) : 1.524

Resistance (Ohms/m) : 0.009452

Standard Wire Gauge : 16.5

Covering : Min: 1.6, Max: 1.63

Voltage (kV) : 5

Features:


Spring Back: 24

Diameter (mm) : 1.422

Resistance (Ohms/m) : 0.01086

Standard Wire Gauge : 17

Covering : Min: 1.5, Max: 1.53

Voltage (kV) : 5

Features:


Spring Back: 27

Diameter (mm) : 1.32

Resistance (Ohms/m) : 0.01282

Standard Wire Gauge : 17.5

Covering : Min: 1.4, Max: 1.43

Voltage (kV) : 5

Features:


Spring Back: 30

Diameter (mm) : 1.219

Resistance (Ohms/m) : 0.01478

Standard Wire Gauge : 18

Covering : Min: 1.3, Max: 1.33

Voltage (kV) : 5

Features:


Spring Back: 32

Diameter (mm) : 1.119

Resistance (Ohms/m) : 0.01802

Standard Wire Gauge : 18.5

Covering : Min: 1.19, Max: 1.22

Voltage (kV) : 5

Features:


Spring Back: 34

Diameter (mm) : 1.016

Resistance (Ohms/m) : 0.02127

Standard Wire Gauge : 19

Covering : Min: 1.08, Max: 1.11

Voltage (kV) : 5

Features:


Spring Back: 36

Diameter (mm) : 0.965

Resistance (Ohms/m) : 0.02378

Standard Wire Gauge : 19.5

Covering : Min: 1.03, Max: 1.06

Voltage (kV) : 5

Features:


Spring Back: 37

Diameter (mm) : 0.914

Resistance (Ohms/m) : 0.0263

Standard Wire Gauge : 20

Covering : Min: 0.98, Max: 1.01

Voltage (kV) : 5

Features:


Spring Back: 38

Diameter (mm) : 0.863

Resistance (Ohms/m) : 0.0297

Standard Wire Gauge : 20.5

Covering : Min: 0.93, Max: 0.96

Voltage (kV) : 5

Features:


Spring Back: 39

Diameter (mm) : 0.813

Resistance (Ohms/m) : 0.0332

Standard Wire Gauge : 21

Covering : Min: 0.88, Max: 0.9

Voltage (kV) : 4

Features:


Spring Back: 37

Diameter (mm) : 0.762

Resistance (Ohms/m) : 0.0383

Standard Wire Gauge : 21.5

Covering : Min: 0.83, Max: 0.85

Voltage (kV) : 4

Features:


Spring Back: 35

Diameter (mm) : 0.711

Resistance (Ohms/m) : 0.0434

Standard Wire Gauge : 22

Covering : Min: 0.77, Max: 0.79

Voltage (kV) : 4

Features:


Spring Back: 37

Diameter (mm) : 0.66

Resistance (Ohms/m) : 0.0512

Standard Wire Gauge : 22.5

Covering : Min: 0.72, Max: 0.74

Voltage (kV) : 4

Features:


Spring Back: 40

Diameter (mm) : 0.61

Resistance (Ohms/m) : 0.059

Standard Wire Gauge : 23

Covering : Min: 0.67, Max: 0.69

Voltage (kV) : 4

Features:


Spring Back: 36

Diameter (mm) : 0.559

Resistance (Ohms/m) : 0.0703

Standard Wire Gauge : 24

Covering : Min: 0.61, Max: 0.63

Voltage (kV) : 4

Features:


Spring Back: 36

Diameter (mm) : 0.508

Resistance (Ohms/m) : 0.0851

Standard Wire Gauge : 25

Covering : Min: 0.56, Max: 0.58

Voltage (kV) : 3

Features:


Spring Back: 48

Diameter (mm) : 0.457

Resistance (Ohms/m) : 0.1051

Standard Wire Gauge : 26

Covering : Min: 0.51, Max: 0.53

Voltage (kV) : 3

Features:


Spring Back: 41

Diameter (mm) : 0.417

Resistance (Ohms/m) : 0.1262

Standard Wire Gauge : 27

Covering : Min: 0.455, Max: 0.46

Voltage (kV) : 3

Features:


Spring Back: 42

Diameter (mm) : 0.376

Resistance (Ohms/m) : 0.1553

Standard Wire Gauge : 28

Covering : Min: 0.415, Max: 0.42

Voltage (kV) : 3

Features:


Spring Back: 42

Diameter (mm) : 0.345

Resistance (Ohms/m) : 0.1994

Standard Wire Gauge : 29

Covering : Min: 0.385, Max: 0.39

Voltage (kV) : 3

Features:


Spring Back: 42

Diameter (mm) : 0.315

Resistance (Ohms/m) : 0.2212

Standard Wire Gauge : 30

Covering : Min: 0.35, Max: 0.355

Voltage (kV) : 3

Features:


Spring Back: 46

Diameter (mm) : 0.295

Resistance (Ohms/m) : 0.2523

Standard Wire Gauge : 31

Covering : Min: 0.325, Max: 0.33

Voltage (kV) : 2.5

Features:


Spring Back: 46

Diameter (mm) : 0.274

Resistance (Ohms/m) : 0.2924

Standard Wire Gauge : 32

Covering : Min: 0.305, Max: 0.31

Voltage (kV) : 2.5

Features:


Spring Back: 46

Diameter (mm) : 0.254

Resistance (Ohms/m) : 0.3403

Standard Wire Gauge : 33

Covering : Min: 0.285, Max: 0.29

Voltage (kV) : 2.5

Features:


Spring Back: 49

Diameter (mm) : 0.234

Resistance (Ohms/m) : 0.4009

Standard Wire Gauge : 34

Covering : Min: 0.265, Max: 0.27

Voltage (kV) : 2

Features:


Spring Back: 51

Diameter (mm) : 0.213

Resistance (Ohms/m) : 0.4839

Standard Wire Gauge : 35

Covering : Min: 0.245, Max: 0.25

Voltage (kV) : 2

Features:


Spring Back: 52

Diameter (mm) : 0.193

Resistance (Ohms/m) : 0.5893

Standard Wire Gauge : 36

Covering : Min: 0.22, Max: 0.225

Voltage (kV) : 1.5

Features:

Diameter (mm) : 2.64

Resistance (Ohms/m) : 0.00314

Standard Wire Gauge : 12

Covering : Min: 1.917, Max: 1.945

Voltage (kV) : 5

Features:

Diameter (mm) : 2.336

Resistance (Ohms/m) : 0.004021

Standard Wire Gauge : 13

Covering : Min: 1.7, Max: 1.73

Voltage (kV) : 5

Features:

Diameter (mm) : 2.032

Resistance (Ohms/m) : 0.005316

Standard Wire Gauge : 14

Covering : Min: 1.6, Max: 1.63

Voltage (kV) : 5

Features:

Diameter (mm) : 1.829

Resistance (Ohms/m) : 0.006562

Standard Wire Gauge : 15

Covering : Min: 1.5, Max: 1.53

Voltage (kV) : 5
