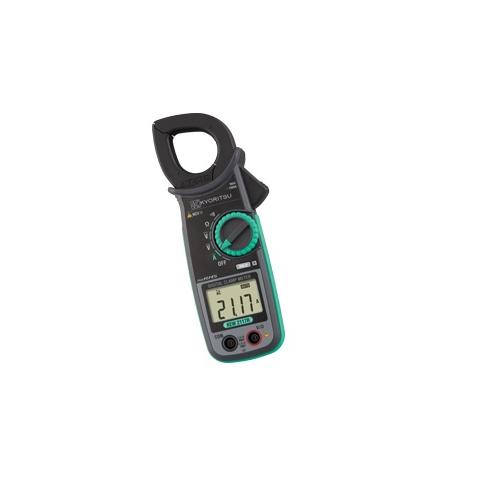

Kew Digital AC Clamp Meter, 2117R
Kew Digital AC Clamp Meter, 2117R
Make: Kew
Price on request
Pack qty: 1 pcs MOQ: 5
• Fully Safety jaw. • Ergonomic over-molded body gives convenient one-hand operation. • Large easy-to-read display with 0.01A resolution. • Long battery life. • Safety Standard IEC 61010-1 CAT IV 300V / CAT III 600V.
Model No: 2117R
Type of Product: Digital AC Clamp Meter
Accessories: 7066A (Test leads), 9079 (Carrying case), R03 (AAA) × 2, Instruction Manual.
DC Voltage: 600 V
AC Voltage: 600 V
Dispatch Days: 4-7 days
Shipping Charges: Rs. 200 (Free delivery for Orders above Rs 2000)
Check Delivery
Product details
Continuity buzzer: 600?(Buzzer sounds below 90?). Applicable standards: IEC 61010-1 CAT IV 300V, CAT III 600V Pollution degree 2, IEC 61010-031, IEC 61010-2-032, IEC 61010-2-033, IEC 61326-2-2(EMC), IEC 60529 IP 40, N50581(RoHS). Power source: R03/LR03 (AAA) (1.5V) × 2. Continuous measuring time: Approx.170 hours (When R3 is used)(NCV_LED:off), (Auto power save : approx. 10 minutes). Dimensions: 204(L) × 81(W) × 36(D)mm. Weight: 220g Approx. (including batteries).
Product features
RNS ID RS031011
Brand Name Kew
Model No 2117R
Type of Product Digital AC Clamp Meter
Accessories 7066A (Test leads), 9079 (Carrying case), R03 (AAA) × 2, Instruction Manual.
DC Voltage 600 V
AC Voltage 600 V
AC Current 1000 A
Resistance 600 ohm-600 Kohm
Jaw Dia 33 mm
