Features: • Compact in Size, Light in Weight and Simple in Use.
• Double moulding provides comfortable and good feeling in hand.
• Penlight illuminates brightly the point to be measured, even in dark place.
• Backlight LCD is highly visible, even in darkness.

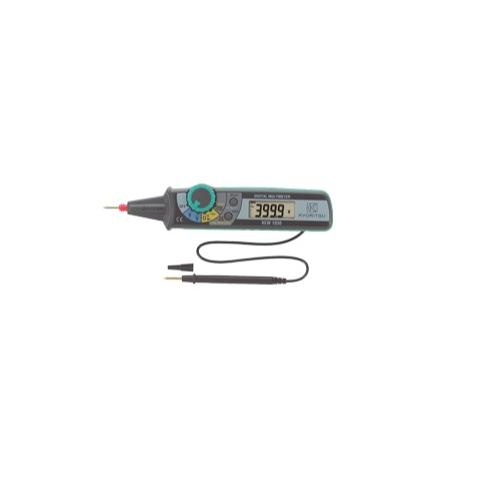

Model No: 1030 Type of Product: Digital Pen Type Multimeter Accessories: Carrying case, LR44 (1.5V) × 2, Instruction manual DC Voltage: 600 V AC Voltage: 600 V More
Dispatch Days: 4-7 days Shipping Charges: Rs. 200 (Free delivery for Orders above Rs 2000)
Continuity buzzer: Buzzer sounds when resistance is 120? or less.
Diode test: Test voltage approx. 0.3 - 1.5V.
Capacitance: 50n/500n/5µ/50µ/100µF (5 Range auto).
DUTY: 0.1 - 99.9%, ±2.5%rdg ±5dgt (Pulse width / Pulse cycle).
Measurement functions: The measured value can be hold by pressing Data hold button.
Other functions: When the battery voltage drops to 2.4V±0.2V or less.
Applicable standards: IEC 61010-1: 2001 CAT III 600V, IEC 61010-031, IEC 61326-1.
Power source: Button type battery LR44 (SR44)1.5V × 2.
Dimensions: 190(L) × 39(W) × 31(D)mm.
Weight: Approx. 100g (including batteries.
